Is AMOLED Better Than OLED in Thermal Scopes? (And When It Actually Matters)

1. Quick Answer: AMOLED vs OLED in Thermal Scopes
2. Sensor Resolution vs Display Resolution: Clearing Up the Confusion
3. Thermal Optics 101: Where the Display Fits in the System
4. What Is OLED in a Thermal Scope?
5. What Is AMOLED and How Is It Different in a Thermal Optic?
6. The AMOLED Advantage in Real Field Use: Image Quality, Speed, and Eye Comfort
7. Heat, Batteries, and Your Own Signature: Why the Display Choice Affects What Sees You
8. The "White Hot" Power Spike and the Stutter Effect: Why Fast Pixels Matter
9. Choosing Between OLED and AMOLED: How It Interacts with Sensor, Lens, and Use Case
10. How Proven Optic Evaluates and Recommends Thermal Displays

If you've been comparing thermal rifle scopes recently, you've probably noticed "AMOLED" showing up on spec sheets where "OLED" used to be. The question is whether that actually changes anything behind the reticle, or if it's just marketing. Here is what the display difference means for your next hunt, and how it fits into our ultimate guide to thermal scopes.

Quick Answer: AMOLED vs OLED in Thermal Scopes

Generally speaking, AMOLED is the better display choice for modern thermal scopes, but only after your thermal sensor, objective lens, and NETD rating are already strong. Display (micro-display) type is not the first spec to prioritize. It is, however, the final clarity multiplier that unlocks everything your optics are capable of showing you.

If you're choosing between two scopes with similar resolution, pixel pitch, noise equivalent temperature difference, lens size, and detection range, the AMOLED unit will almost always deliver a crisper, faster, more comfortable digital image than a plain OLED.

Here's the short version:

• AMOLED: faster response times, better performance in extreme conditions (cold and heat), lower smear and ghosting at high refresh rate, often higher brightness and contrast. AMOLED is a type of OLED technology, so all AMOLED screens are OLEDs, but not all OLEDs are AMOLED.

• OLED: can be slightly more affordable, sometimes a touch wider field of apparent view, still far superior to liquid crystal displays (LCD) for thermal imaging.

At Proven Optic, we typically recommend AMOLED displays for serious night hunting or tactical work when budget allows. For value-focused builds, a well-implemented OLED display is still a major step up from any LCD screen.

Sensor Resolution vs Display Resolution: Clearing Up the Confusion

One common source of confusion when shopping for thermal scopes is mixing up sensor resolution and display resolution. These are two distinct specs that both affect image quality but in different ways.

• Sensor resolution refers to the number of pixels in the thermal scope core itself — for example, 640×512 or 1280×1280. This determines how much thermal detail the scope can detect and process.

• Display resolution is the number of pixels on the screen inside the scope that you actually look through — typically around 1024×768 or higher in premium models.

A higher sensor resolution means more thermal information is captured, but if the display resolution is low, some of that detail can be lost or appear less sharp. Conversely, a high-resolution display can’t create detail that the sensor doesn’t provide. For the best image clarity, both sensor and display resolutions should be strong and well matched.

Keeping these two specs separate helps you make smarter decisions and understand what you’re actually paying for in a thermal scope.

Thermal Optics 101: Where the Display Fits in the System

Here's how a thermal scope works at a high level: the objective lens gathers infrared radiation and focuses it onto the thermal sensor core, which reads the emitted heat in your field of view. A processor converts that data into a visual image, which is then projected onto an OLED or AMOLED display screen for your eye to see. While the display is crucial, it is only one piece of the puzzle—all of these components work together as detailed in our comprehensive guide on how thermal scopes work.

The major contributors to a good clean image quality in hunting thermal optics include:

• Objective lens size and material: a larger objective lens made of germanium with low optical dispersion gathers infrared light more efficiently, directly affecting detection range and providing a wider field of view. The lens quality and size are critical for achieving sharp, clear images in thermal scopes.

• Sensor resolution: thermal sensor sizes can reach 640x512 pixels in common high-end cores, with high-end thermal scopes offering resolutions up to 1280x1280. Dedicated thermal scopes offer these higher resolution options, while clip-on thermal optics convert daytime scopes into thermal scopes but can limit magnification capabilities.

• Pixel pitch: high-quality sensors typically have a pixel pitch of 12 µm. A lower pixel pitch results in a sharper image and higher base magnification compared to older 17 µm cores. A smaller pixel pitch matters more as you push out to longer distances.

• NETD (noise equivalent temperature difference): this is the measuring unit for thermal sensitivity, rated in millikelvin. NETD ratings below 20 mK indicate high thermal sensitivity. A lower NETD rating improves image clarity in low contrast situations like fog, humidity, or warm nights where temperatures ranging across your scene are subtle.

• Refresh rate: thermal scopes typically have refresh rates of 50–60 Hz. A faster refresh rate matters for tracking running hogs, coyotes, or moving suspects. A refresh rate lower than 30 Hz creates visible stutter on anything moving.

Display type is the last stage of this chain. It cannot fix a weak thermal core or a poor NETD, but it can fully unlock what good optics provide. Dedicated thermal scopes typically have larger lens sizes than clip-ons, and thermal scopes can detect heat signatures in complete darkness regardless of display type.

Now that we know where the display fits, let's look specifically at OLED vs AMOLED and why the difference is bigger in a thermal scope than in a smartphone.

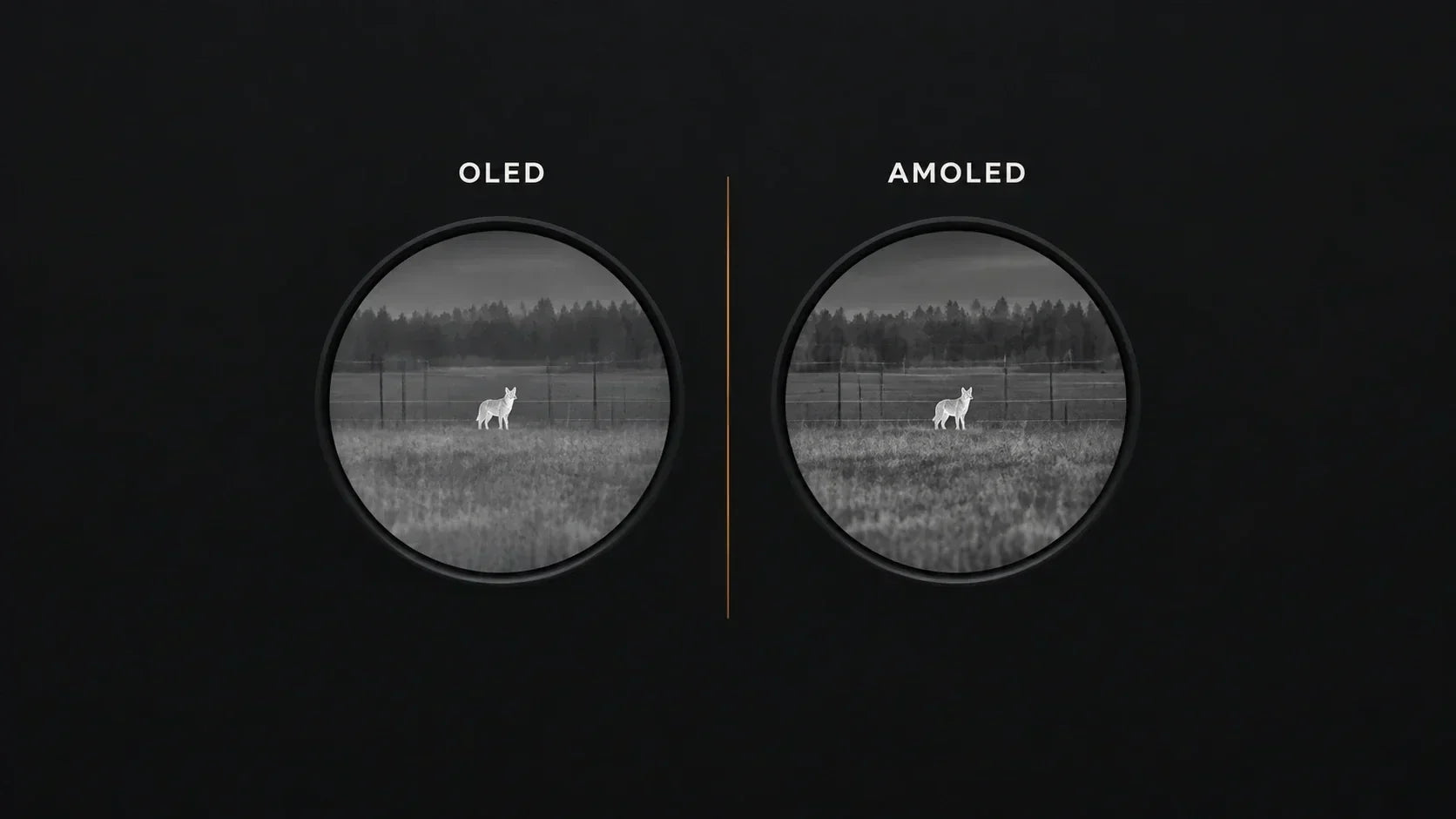

Image of oled pixel vs amoled pixel showing the difference.

What Is OLED in a Thermal Scope?

OLED stands for organic light emitting diode. It's a self-emitting display screen where each pixel makes its own light. There's no backlight, which means very deep blacks and outstanding clarity compared to LCD technology. Most thermal optics made between roughly 2015 and 2022 used standard OLED displays.

Typical OLED setups in thermal rifle scopes include:

• Usually paired with 384×288 or 640×480 sensors and 50–60 Hz refresh rate.

• Often around 1024×768 display resolution in riflescopes and monoculars.

• Standard OLED displays are more affordable to produce than AMOLED displays, which is why OLED displays are generally more affordable in the final product.

The limitation, commonly called the "passive matrix" design, works like this:

• Pixels are driven in rows. Power has to run down the line to light each pixel in sequence.

• When you pan quickly or use digital zoom, there can be a faint smear or stutter because whole rows are charged and discharged together.

• On bright palettes like White Hot at high contrast, this can show up as trailing edges around moving animals.

In extreme cold, OLED handles temperatures far better than LCD, but at sub-zero hunts below 10°F or on long stakeouts, some users notice slower response and a slight persistence when the image shifts from very bright to very dark.

"On my older OLED scope, I could hit hogs just fine, but when I swung fast across a group at 75 yards, the outlines smeared just enough that picking the biggest hog took an extra heartbeat."

• Anecdotal field feedback from Texas hog hunters, not a laboratory measurement.

What Is AMOLED and How Is It Different in a Thermal Optic?

AMOLED (Active-Matrix Organic Light-Emitting Diode) is still an OLED at its core, but it incorporates an active-matrix thin-film-transistor backplane behind every pixel. Each pixel has its own dedicated capacitor and transistor, a setup commonly called a "2T1C" circuit, acting as a tiny gatekeeper that holds the exact brightness until the image updates again.

In practical terms for shooters:

• In a standard OLED row, the whole line waits its turn to charge. That tiny wait is what creates the subtle "stutter effect" when you pan.

• In an AMOLED, every pixel has its own "battery and valve" (capacitor + transistor), so it doesn't wait on the row. It just holds brightness continuously.

• This architecture, especially in modern micro-OLED, drives pixel changes on the order of microseconds rather than milliseconds. AMOLED provides faster response times than standard OLED as a result. Micro-OLED refers to a specific type of AMOLED display designed for compact, high-resolution applications like thermal optics, where a silicon backplane enables very small pixels and extremely fast pixel switching times.

• AMOLED's individual pixel control enables true blacks and high contrast, because each pixel turns completely off independently.

• AMOLED displays are suited for compact, high-resolution optics and allow for higher pixel densities and precise brightness management.

• AMOLED displays produce clearer, sharper images than standard OLED displays, which is why AMOLED displays are used in higher-end thermal scopes.

• Many premium thermal brands are quietly shifting new flagships to AMOLED even when marketing materials only say "OLED display." Check the spec sheet for "AMOLED" or "active matrix OLED" wording.

• Note - Durability: both thermal scopes with OLED and AMOLED displays exhibit equal durability under typical hunting and tactical conditions, making either a reliable choice in physical robustness.

"On side-by-side hog hunts, our testers consistently reported that the AMOLED scope let them 'lead' a running sounder more confidently, especially past 150 yards, simply because the image didn't smear when they panned."

• Proven Optic internal field testing

The AMOLED Advantage in Real Field Use: Image Quality, Speed, and Eye Comfort

Now that OLED and AMOLED are defined, here's how the difference plays out when you're behind the rifle at 2 a.m. on a hot Texas night or working a perimeter search with a carbine. Thermal imaging scopes often use AMOLED for its advantages in motion clarity, and AMOLED improves thermal scope performance in low-light conditions specifically because of its pixel-level control.

Image detail:

• With the same sensor resolution and pixel pitch, AMOLED typically gives higher apparent contrast and micro-detail because each pixel can track subtle gray level changes more precisely.

• You'll see cleaner fur texture on hogs at 200–300 yards, sharper edges on antlers, and more readable foliage outlines in White Hot or Outdoor Alert palettes. That's the difference between a good image and a truly detailed image.

Motion and speed:

• At 50–60 Hz refresh rates, an AMOLED's fast pixel response reduces motion blur when tracking. AMOLED displays usually have faster refresh rates capability than standard OLED.

• This is especially noticeable when shooting from a moving vehicle or ATV, or when rapidly transitioning between multiple targets in a field.

• AMOLED doesn't increase the scope's refresh rate by itself, but it allows the screen to fully keep up with the thermal detector's output.

Eye comfort:

• AMOLED's deeper blacks mean less halo and glow around bright hot targets, reducing eye strain over a long night of scanning.

• Because the display screen can run slightly dimmer while still being crisp, your pupil doesn't slam shut every time you glance into the scope, which preserves more of your natural night vision in the non-shooting eye.

• If you're running a helmet-mounted night vision monocular on one eye and a thermal scope on the rifle, an AMOLED unit lets you dim the scope farther before the image gets muddy, keeping your NV eye from washing out.

Heat, Batteries, and Your Own Signature: Why the Display Choice Affects What Sees You

AMOLED isn't just better for what you see; it's better for what sees you. In thermal work, the heat your scope produces can show up as a signature to someone else's thermal optics sometimes called glow back, and that matters for both tactical users and hunters who don't want to spook game at distance.

The battery-to-heat nexus:

• Every milliamp your scope burns ends up as heat somewhere: in the housing, the processor, or the display. AMOLED reduces power consumption during dark imagery applications because black pixels turn completely off.

• A less efficient display that runs brighter than necessary dumps more heat into the body of the scope.

• Over an hour or two, that can create a mild "warm pipe" signature from the side that is surprisingly visible on a higher quality scope with good optics. It will also burn up your batteries faster.

How AMOLED reduces your thermal footprint:

• Because AMOLED pixels can be held more precisely at the needed brightness, you can often run the screen at a lower global brightness setting without losing target detail.

• Less screen power equals less heat in the ocular area and less total thermal footprint.

• AMOLED maintains high operational integrity in extreme cold temperatures, and in cold weather the halo of heat is tighter and fades faster when you shift from active use to standby.

Preventing "scope-face" heat signatures:

• When you clamp your cheek to the stock for a long hold, your face warms the comb and ocular area. A hotter display compounds this, creating a noticeable "glow" at the shooter's position when viewed from the flanks.

• With AMOLED at moderate brightness and short auto-sleep intervals, that glow shrinks in size and intensity.

"On a rural warrant service, our law-enforcement contacts reported they could see the outline of a suspect's thermal scope from 200+ yards with their overwatch thermals, purely from the warm housing and ocular. A cooler-running AMOLED scope and disciplined on/off use made that significantly harder to pick up."

• Field feedback from LE contacts, not a controlled experiment.

AMOLED's efficiency and dimmable clarity can measurably shrink your thermal footprint, which matters when the other side also has thermal imaging.

The "White Hot" Power Spike and the Stutter Effect: Why Fast Pixels Matter

Hunters often notice issues on high-contrast palettes like White Hot when panning across treelines, fences, or herds: bright objects smear, flicker, or "jump." This isn't always the sensor. Much of it comes from how the display drives its pixels.

The "White Hot" power spike:

• When you swing from a cool, empty pasture to a pack of hot hogs, the number of max-bright pixels on the display screen jumps dramatically.

• On a slower or less-controlled display, that sudden demand can cause the whole screen to briefly overshoot or undershoot brightness, like a quick flash or a flattening of detail.

• This is exactly when fine details, like which pig is the boar or which figure is holding a weapon, temporarily wash out.

How AMOLED handles it:

• Each AMOLED pixel has its own "reservoir," so the display doesn't slam whole rows up and down in brightness simultaneously. AMOLED allows for precise brightness management at the individual pixel level.

• Instead of one big spike, brightness changes are distributed and tightly regulated, keeping contrast and gray-scale steps stable even during big scene changes.

• The result: fewer "white blobs" and more consistent detail when a new hot target enters the frame suddenly.

The stutter effect in motion:

• On some older OLED scopes, fast pans create staccato motion where animals appear to jump from position to position instead of flowing smoothly, even at 50 Hz.

• This feels like a frame-rate issue, but much of it is the display pixels not fully settling before the next frame arrives.

• Modern AMOLED, especially on silicon backplanes with sub-microsecond switching, lets the image fully resolve between frames, so 50–60 Hz looks closer to continuous motion.

In practical terms: when you sweep across a group at 3× base magnification and snap back to the lead hog, the AMOLED screen lets you track individual shoulders and heads instead of just a glowing mass, so your first shot lands where it should instead of just somewhere in the group.

Choosing Between OLED and AMOLED: How It Interacts with Sensor, Lens, and Use Case

Display type should never be chosen in isolation. It must be weighed alongside sensor resolution, pixel pitch, NETD, lens size, base magnification, and detection range. Here's the general rule of thumb by different types of use:

• For primarily close-range hog or coyote work inside 200 yards with a 384×288 sensor and 25 mK+ NETD, a well-implemented OLED scope can be perfectly serviceable. Put extra budget into a better lens or sensor first.

• For mixed hunting and property defense with shots out to 300–500 yards, especially in humid Southern climates, prioritize a 640×512 sensor with 12 µm pixel pitch, low NETD, and then AMOLED to preserve detail at 4–6× zoom. Note that AMOLED displays can experience image retention with fixed elements like static reticle overlays over very long periods, so rotating palettes occasionally helps.

• For professional tactical users, LE, or anyone who expects to face adversaries with their own thermal optics, AMOLED plus disciplined power management is preferred for reduced blur and slightly lower thermal footprint.

How display interacts with magnification and pixel pitch:

• High base magnification (4× and up) and heavy use of digital zoom amplify any display blur or stutter. In those setups from higher end scopes, AMOLED's sharpness pays bigger dividends.

• With very fine pixel pitch (12 µm) and high resolution, AMOLED helps ensure you're not "wasting pixels" on a softer display. The best cores deserve the best quality display to match.

• A 60 Hz scope with a sluggish display can feel like a 30 Hz unit. A 50 Hz scope with a fast AMOLED panel can feel smoother than some "60 Hz" scopes that pair fast sensors with middling screens.

Budget tiers:

• Under $2,000: prioritize sensor resolution, NETD, and lens. An OLED display is fine if the rest is solid. Very good optics start with the sensor, not the screen.

• $2,000–$4,000 range: look for 640×512 / 12 µm, low NETD, and strongly favor AMOLED when possible.

• Professional or mission-critical: AMOLED is strongly recommended unless there's a very specific requirement forcing another choice.

Proven Optic can walk you through comparing concrete models where the main difference is OLED vs AMOLED and talk through real-world tradeoffs rather than just spec-sheet numbers. Reach out to our team for model-to-model comparisons tailored to how and where you actually shoot.

How Proven Optic Evaluates and Recommends Thermal Displays

At Proven Optic, we specialize exclusively in hunting and tactical optics, and we see both field results from serious hunters and feedback from investigators working with Proven Justice. Our recommendations are driven by how gear performs off the bench and in the dark.

We often steer first-time buyers to the best sensor and NETD they can afford, then guide them toward AMOLED if the price difference is reasonable. For repeat customers upgrading from older OLED scopes, we specifically explain what they'll notice most: less smear, better comfort, and slightly more subtle target detail at distance.

In summary:

• AMOLED is generally the better display for modern thermal scopes, especially when paired with strong sensors and low NETD.

• OLED is still a major step up from LCD and can be the right call in value-focused builds, but it is now the "good" option where AMOLED is the "best."

• Durability between OLED and AMOLED displays is generally equal, so your choice can focus on performance and image quality.

• Prioritize the full thermal system, sensor, lens, NETD, refresh rate, and display, rather than chasing any single buzzword on the box.
