How do I set up the zero stop feature after zeroing my rifle?
Loosen three hex screws with 1.5mm wrench, rotate Return to Zero disc clockwise until it stops, retighten screws at zero position.

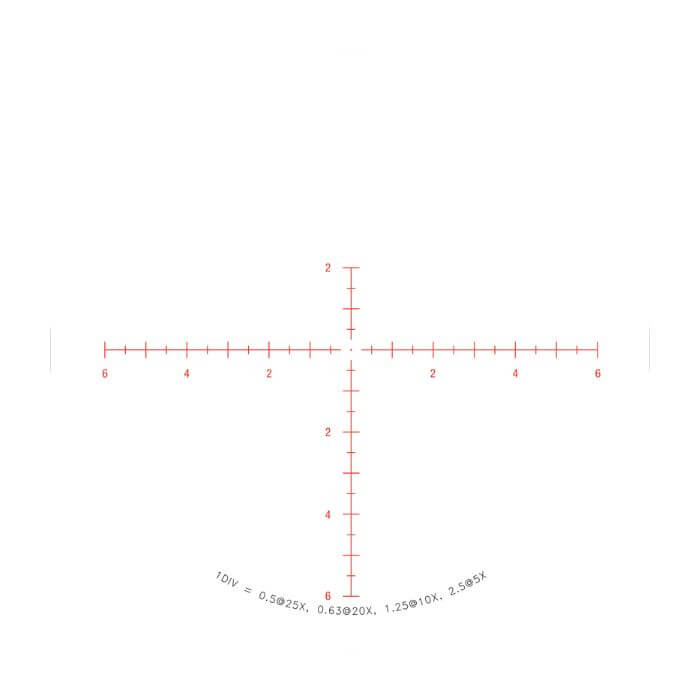

What's the difference between MRAD and MOA reticles for hunting?
MRAD uses metric measurements (3.6 inches at 100 yards), MOA uses inches (1 inch at 100 yards). Both work equally well for hunting applications.
Why does my scope have a tight eyebox at higher magnifications?
Second focal plane design creates tighter eye relief requirements at maximum magnification. Maintain consistent cheek weld and proper scope positioning for optimal clarity.
Can the illuminated reticle be used in daylight conditions?
Yes, brightness settings 4-5 provide daylight visibility. Ten brightness levels with off positions between each setting accommodate all lighting conditions.
What is the minimum parallax focus distance for close-range shooting?
Parallax adjusts from 25 yards to infinity, with some users achieving focus as close as 13 yards for dry-fire practice.
How long does the CR2032 battery last in normal use?
The battery provides 68 hours of continuous operation on the medium-high red setting and 198 hours on the green illumination setting.
What warranty coverage does Trijicon provide for this riflescope?
The limited lifetime warranty covers optical systems and the metal structure. Electronics are warranted for 5 years from the manufacturer's date.
Is this scope suitable for ultralight hunting rifle builds?
At 25.6 ounces, this scope exceeds the typical weight of ultralight configurations. Consider lighter options for weight-sensitive hunting applications.
