Includes
- 6.5 MOA RMR Type 2
- Flattop Thumbscrew Mount (TA75)
- LENSPEN (TA56)
- Lanyard Assembly for Adjuster Caps (TA107)
- Trijicon Logo Sticker (PR15)
- ACOG Manual
- Warranty Card
Overview

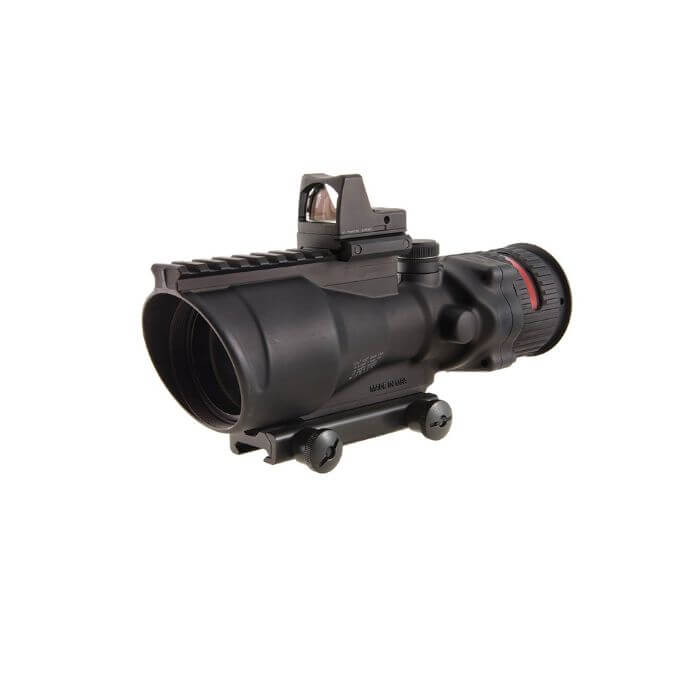

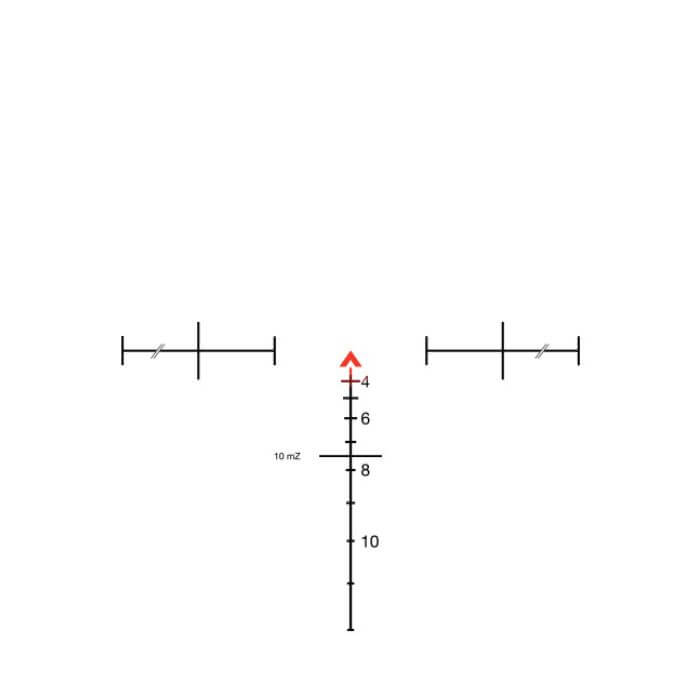

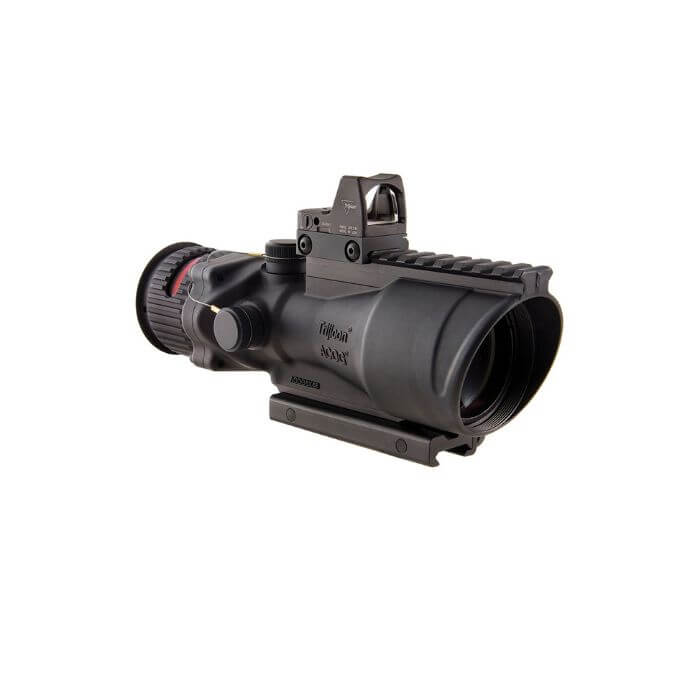

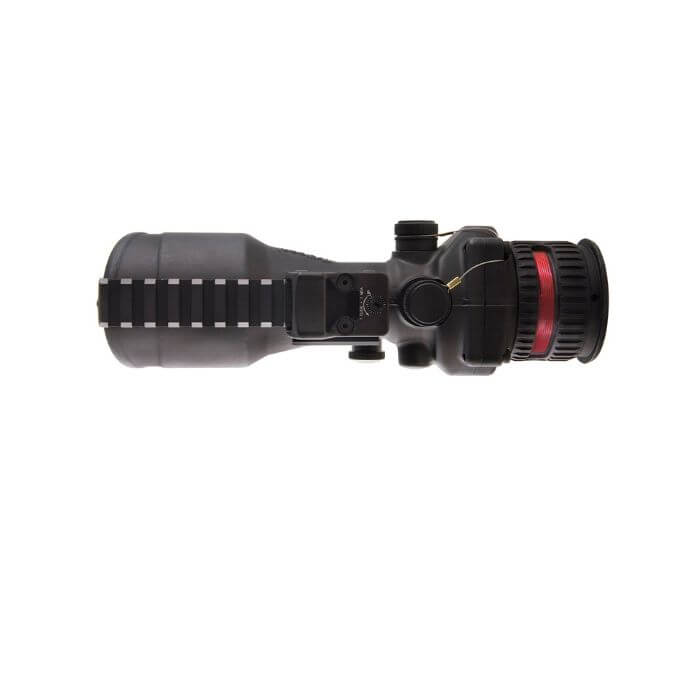

The military’s need for a magnified, self-luminous tactical sight that enhances target identification and increases hit probability on extended-range shots has given rise to the new Trijicon ACOG® 6x48. Powered by Trijicon’s patented fiber optics and tritium-based technology, the new TA648-D-100560 ACOG® reticle features a red chevron aiming point. It also incorporates a bullet drop compensator (BDC) with additional aiming points estimated for trajectory of the 7.62mm M80 out to 1200 meters. To further improve target acquisition and hit potential, the new ACOG® 6x48 incorporates Trijicon’s Bindon Aiming Concept™ (BAC) feature – a revolutionary both-eyes-open method of aiming. Like other members of the Trijicon ACOG® line, the new ACOG® 6x48 is battery free and waterproof to 500 feet. This model of the 6x48 ACOG® features an 6.5 MOA RMR Type 2.
Features
ALWAYS ON, ALWAYS READY
- Most ACOG® models are battery free, featuring a tritium/fiber optic illuminated reticle that automatically adjusts the brightness based on available light.
TAKE CONTROL
- Several ACOG models are designed with a user adjustable brightness setting powered by a single AA battery. The 3.5x35 LED and 4x32 LED models both offer six adjustable brightness settings.
RUGGED, RELIABLE HOUSING DESIGN
- Fixed-power design allows for minimal moving parts to create a nearly indestructible sighting system.
“BOTH EYES OPEN” DESIGN
- “Both eyes open” shooting using Trijicon's Bindon Aiming Concept™ (BAC) feature allows for improved situational awareness.
OUTSTANDING CLARITY
- The quality of the glass and multi-coated lenses maximize light-gathering capabilities and clear field of view with zero distortion.
EXACT TARGET DISTANCES & HOLDS
- Most ACOG models feature a bullet drop compensating and target-ranging reticle for decisive aiming.
COMBAT PROVEN
- No other magnified optic has been used more in combat than the ACOG.
SHOCK-RESISTANT
- Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.
WATERPROOF
- Exceptional waterproof performance that exceeds military standards. Dry nitrogen-filled to eliminate fogging. This optic is tested to withstand and perform in extreme cold and heat with dry-nitrogen filled housing that mitigates fogging.
Specifications
Length x Width x Height
- 9 in x 2.9 in x 3.4 in
- (228.6mm x 73.66mm x 86.36mm)
Weight
Magnification
Objective Size
Reticle Pattern
Day Reticle Color
Night Reticle Color
Bullet Drop Compensating (BDC)
Caliber
Bindon Aiming Concept™ (BAC)
Illumination Source
Power Source
Adjustment
- 4 clicks per in. @100 yards
Eye Relief
Exit Pupil
Field of View (degrees)
Field of View (feet)
- 17 ft. @ 100 yds. (5.67m @ 100m)
Mount
- Flattop Thumbscrew Mount (TA75)
Housing Material
Finish
