COMPACT RTR TM223-Reticle

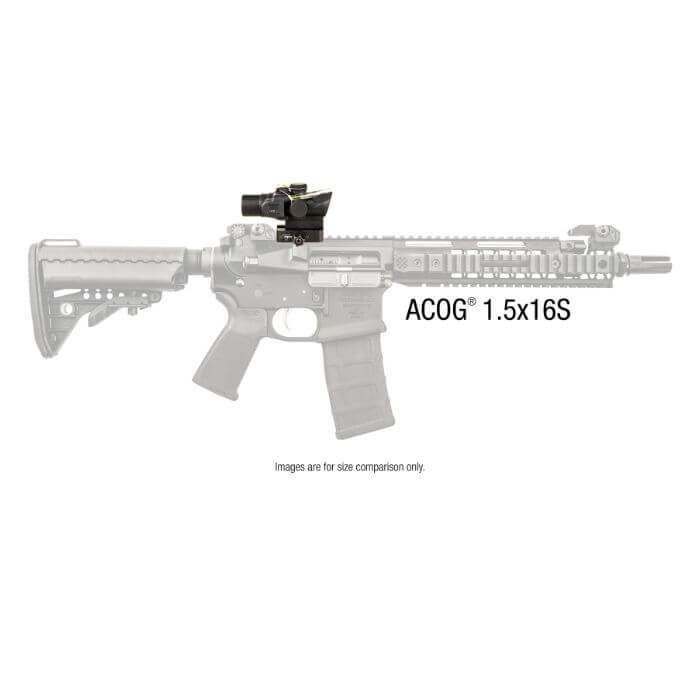

Trijicon - ACOG 1.5x16s Compact - Selectable Reticle

by Trijicon
$1,029.99
Reticle

Notify me when back in stock

Includes

  • Trijicon Q-LOC™ Technology Mount
  • Scopecoat
  • LENSPEN (TA56)
  • Trijicon Logo Sticker (PR15)
  • ACOG Manual
  • Warranty Card

Overview

The Trijicon ACOG 1.5x16S Scope is a fixed magnification riflescope with an illuminated reticle pattern for use in any lighting conditions. Dual illumination provides two sources of battery-free illumination – fiber optics and tritium. The fiber optics use ambient light to automatically adjust the brightness level and contrast of the reticle to available light conditions. The tritium-phosphor lamp glows in low-light conditions. The ACOG body is designed to be extremely rugged and reliable. Wrapped in a smaller package, at 5.1 ounces (without mount), this ACOG is perfect for fast-moving tactical teams operating in close quarters or for speed-oriented competition venues. The forged 7075-T6 aircraft-grade aluminum alloy housing provides for a nearly indestructible sighting system. No other magnified optic has been used more in combat than the Trijicon ACOG. No tools are needed for windage and elevation adjustments because the ACOG features external adjusters. All adjuster caps are provided with a lanyard assembly to minimize the loss of caps. This model provides weapons like the M16/M4 with excellent fire control capability. Targets are easier and quicker to acquire through the 1.5x16 models because of the larger field of view (7.4 degrees) and eye-friendly design.

The Trijicon Compact ACOG Mount w/ Q-LOC™ Technology features a Mil-Spec drop test rated 6061-T6 aluminum design, with an easy to use one handed tool less mounting system.  The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened.

The mount boasts a low weight and low profile design with superior return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail.
- Matte black anodized finish
- Made in the USA

Torque Spec (to rail):
Spring Tension Only: 12-16 in. / lbs.
Can be Tightened To: 30-38 in. / lbs.



Features

ALWAYS ON, ALWAYS READY

  • Most ACOG® models are battery free, featuring a tritium/fiber optic illuminated reticle that automatically adjusts the brightness based on available light.

TAKE CONTROL

  • Several ACOG models are designed with a user adjustable brightness setting powered by a single AA battery. The 3.5x35 LED and 4x32 LED models both offer six adjustable brightness settings.

RUGGED, RELIABLE HOUSING DESIGN

  • Fixed-power design allows for minimal moving parts to create a nearly indestructible sighting system.

“BOTH EYES OPEN” DESIGN

  • “Both eyes open” shooting using Trijicon's Bindon Aiming Concept™ (BAC) feature allows for improved situational awareness.

OUTSTANDING CLARITY

  • The quality of the glass and multi-coated lenses maximize light-gathering capabilities and clear field of view with zero distortion.

EXACT TARGET DISTANCES & HOLDS

  • Most ACOG models feature a bullet drop compensating and target-ranging reticle for decisive aiming.

COMBAT PROVEN

  • No other magnified optic has been used more in combat than the ACOG.

SHOCK-RESISTANT

  • Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.

WATERPROOF

  • Exceptional waterproof performance that exceeds military standards. Dry nitrogen-filled to eliminate fogging. This optic is tested to withstand and perform in extreme cold and heat with dry-nitrogen filled housing that mitigates fogging.



Specifications

Length x Width x Height
  • 4 in x 2.10 in x 2.58 in
  • (101.6mm x 53.34mm x 65.53mm)
 Weight
  • 7.2 oz. (204.12g)
 Magnification
  • 1.5x
 Objective Size
  • 16mm
 Reticle Pattern
  • Circle Dot
  • Rapid Target RTR
 Day Reticle Color
  • Green
  • Red
 Night Reticle Color
  • Green
  • Red
 Bindon Aiming Concept™ (BAC)
  • Yes
 Illumination Source
  • Fiber Optics & Tritium
 Power Source
  • Fiber Optics & Tritium
 Adjustment
  • 0.5 MOA per click
 Eye Relief
  • 2.4 in. (60.96mm)
 Exit Pupil
  • 0.42 in. (10.67mm)
 Field of View (degrees)
  • 7.4° - 39°
 Mount
  • Trijicon Q-LOC™ Technology Mount
 Housing Material
  • Forged Aluminum
 Finish
  • Matte Black



Downloads
