AGM - Secutor LRF-C 50-640 Professional Grade Thermal Imaging Clip-On 12 Micron 640x512 (50 Hz), 50 mm lens

by AGM
$4,995.00

Notify me when back in stock

Overview

Characteristics

Detector type: 12μm VOx Uncooled Focal Plane Array

Refresh rate: 50 Hz

Resolution: 640 x 512

Base Magnification: 1×

FOV: 8.8° × 7.0°

Package Includes

  • Mount
  • Four CR123A Battery
  • USB Cable
  • Lens Cloth
  • Manual
  • Carrying Case

Downloads

Data Sheet User Manual

Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

Description And features


**COMING SOON** Announced at SHOT Show 2024, THE AGM Secutor LRF line of Thermal Scopes will soon be available to purchase. If you'd like to be the first to know when it's available, Sign up for our email notifications at the bottom of the page and/or follow us on our social media pages.**

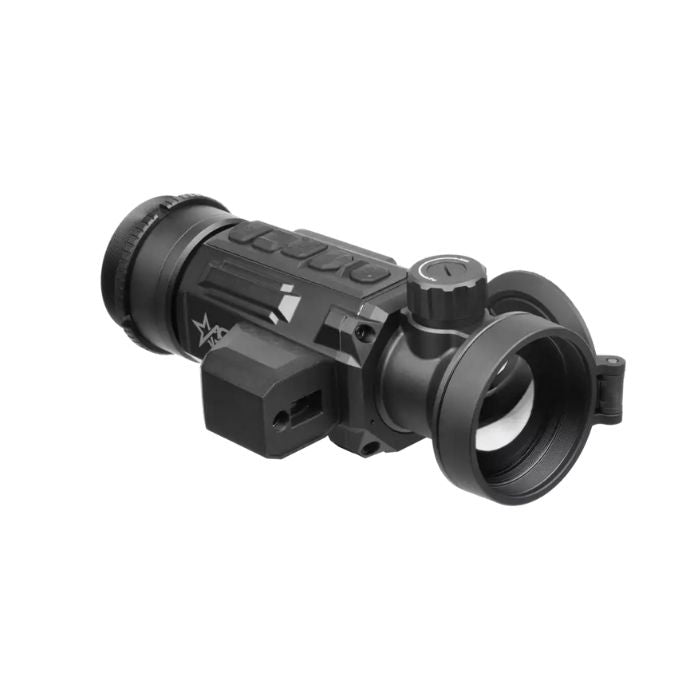

The Secutor LRF-C is a compact thermal imaging clip-on system with built-in precision laser rangefinder that allows quick transformation of the day optics into thermal imaging device without any special tools or equipment. Equipped with a highly sensitive, 12μm thermal detector and 1024×768 OLED monitor, the AGM Secutor LRF-C provides a clear image under harsh environmental conditions including darkness, fog, smoke, dust, rain, snow, brush, camouflage, etc. The user-friendly interface, comfortable and ergonomic operating controls makes Secutor LRF-C use incredibly easy. The Secutor LRF-C can easily be attached in front of rifle scopes with magnification up to 10x for medium range use.
The built-in laser range finder of the AGM Secutor LRF-C is designed to determine the exact distance between the observer and the target. Measurement results are displayed in the scopes monitor. Four replaceable Li-Ion battery gives the device more than 6 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB to USB-C connector for a significant increase of operating time. The device is equipped with fast EMMC storage for on-board video/audio recording and image capture. Onboard Wi-Fi module allows live video streaming and video/image recording via mobile applications.

Warning: California's Proposition 65

  • Quick conversion of daytime optics into thermal imaging scope
  • 12μm thermal detector
  • High sensitivity (NETD less than 20 mK)
  • Fast 50Hz imaging
  • Built-in laser rangefinder
  • Adjustable color palettes
  • High resolution OLED display
  • On-board video/audio recording and image capture
  • Built-in EMMC storage (16 GB)
  • Wi-Fi data transmission
  • Standby mode
  • More than 6 hours battery life
  • External power supply compatibility
  • Waterproof & shockproof
  • 5-year warranty

Specifications


Palettes Black Hot, White Hot, Red Hot, Fusion Dimensions 193 × 104 × 74 mm (7.6 × 4.1 × 2.9 in) (w/o mount) Exit Pupil Diameter 22 mm Video Recording Yes Audio Recording Yes Magnification 1x Detector type 12μm VOx Uncooled Focal Plane Array Response Waveband 8 μm to 14 μm FFC (Flat Field Correction) Auto, Manual, External Correction Highest Temperature Spot Tracking Yes Standby Mode Yes Refresh rate 50 Hz Resolution 640 × 512 Laser Rangefinder Up to 1000 m, ±4 m accuracy Laser Wavelength 905 nm Detection Range (6' object) 2,600 m/yd Lens system 50 mm; F1.0 NETD Less than 20 mk (@25°C), F#=1.0 Field of view (H × X) 8.8° × 7.0° Monitor 1024x768, 0.39 inch, OLED Storage 16 GB EMMC Capture Snapshot Yes Battery Type Four CR123A Lithium Battery Wi-Fi Yes Battery Operating Time Мore than 6 hours External power supply 5 VDC/2 A, USB Type-C Operating Temperature Range -30°C to 55°C (-22°F to 131°F) Weight 0.63 kg (1.38 lb) Protection Level IP67
