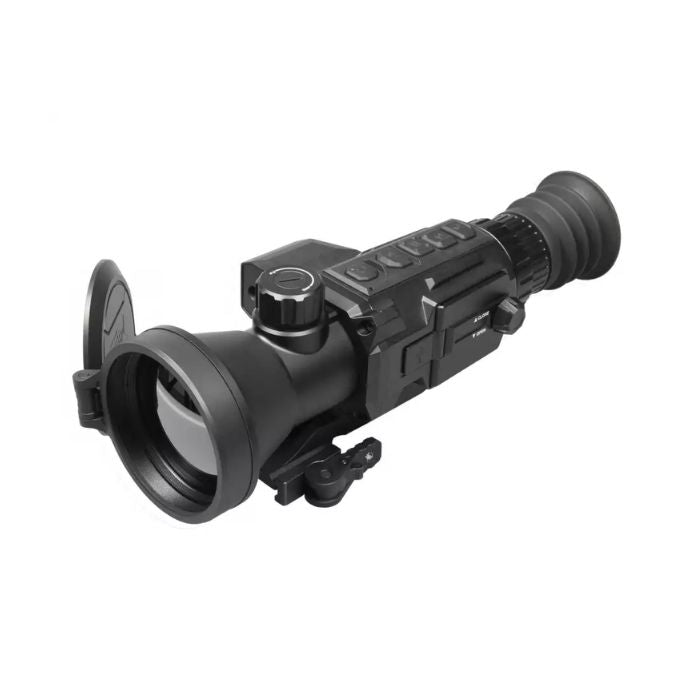

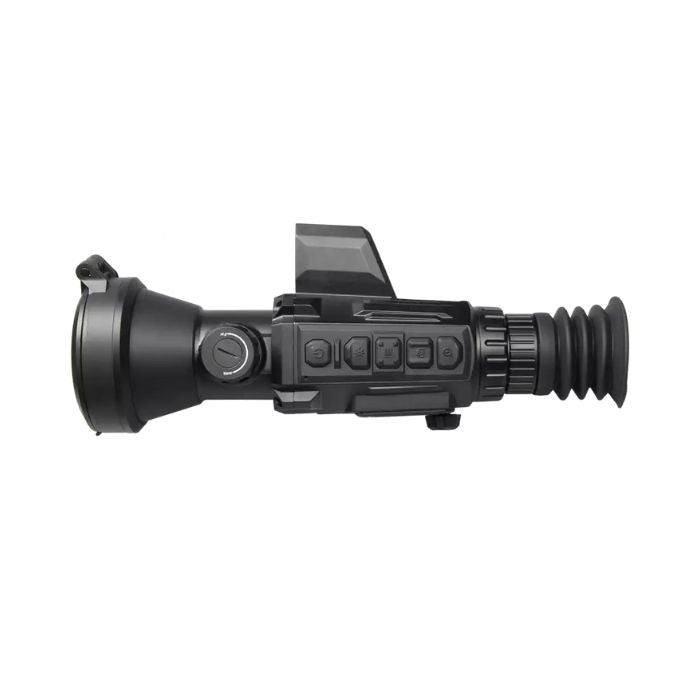

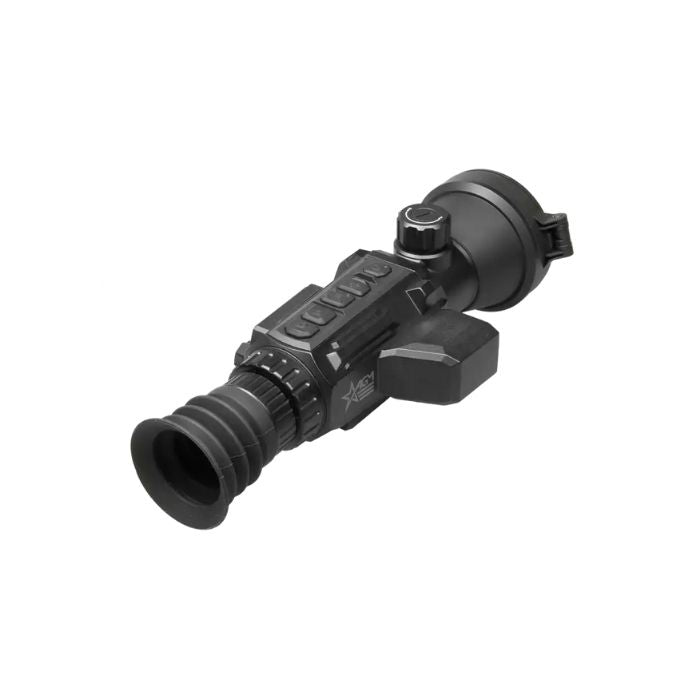

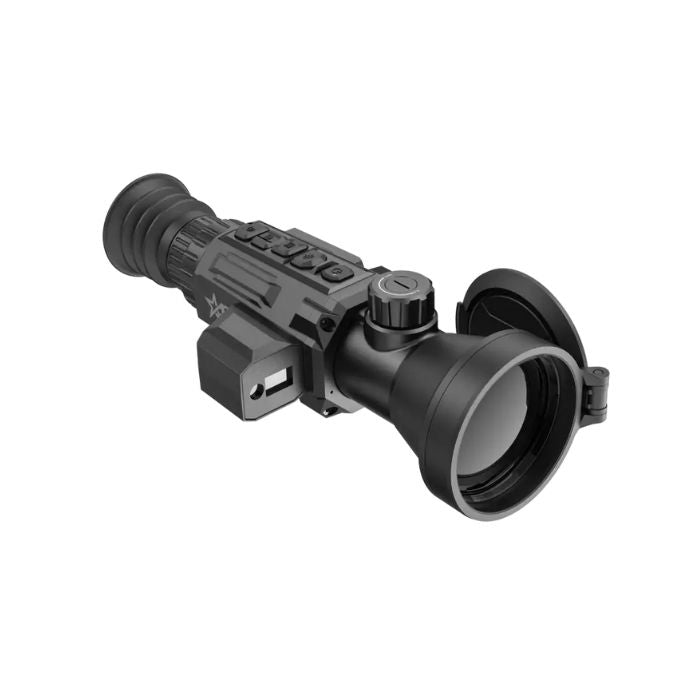

AGM - Secutor LRF 75-640 Professional Grade Thermal Imaging Rifle Scope 12 Micron 640x512 (50 Hz), 75 mm lens.

by AGM
$5,995.00
 More payment options

Notify me when back in stock

Characteristics

Detector type: 12μm VOx Uncooled Focal Plane Array

Refresh rate: 50 Hz

Resolution: 640 x 512

Base Magnification:  4× – 32×

FOV: 5.9° × 4.7°

Downloads

Data Sheet User Manual

Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

Description And features


**COMING SOON** Announced at SHOT Show 2024, THE AGM Secutor LRF line of Thermal Scopes will soon be available to purchase. If you'd like to be the first to know when it's available, Sign up for our email notifications at the bottom of the page and/or follow us on our social media pages.**

The NEW Secutor LRF’s were built to expand and diversify the line of rangefinder equipped thermal riflescopes in the AGM assortment. Though the Secutor LRF series will utilize the same upgraded thermal sensors that can be found across the majority of AGM’s new products, the three primary differences include an upgraded 1000m laser rangefinder, a digital compass and utilization of a CR123A based
power system. These differences, while primarily aimed at more noncommercial tactical applications, still offer both extended ranging and battery familiarity to commercial predator hunters as well. The extended range of the LRF, when paired with the non-proprietary CR123A power system, helps make the Secutor LRF’s a great option for different law enforcement and defense applications. Meanwhile, the integrated compass gives shooters an added layer of situational and positional awareness. The newly introduced sub-20 milikelvin thermal sensors will aid users in these tactical scenarios by increasing their ranging capabilities, as well as increase their ability to both detect and identify targets at longer distances. With both 50 and 75mm options, the Secutor LRF’s provide more authenticity than ever to the phrase: long range.

Warning: California's Proposition 65

  • 12μm thermal detector
  • High thermal sensitivity, NETD < 20mK
  • Fast 50Hz imaging
  • Built-in laser rangefinder
  • Adjustable color palettes
  • High resolution OLED display
  • Various reticle types and colors
  • 1x, 2x, 4x, 8x digital zoom
  • On-board video/audio recording and image capture
  • Built-in EMMC storage (16 GB)
  • Wi-Fi data transmission
  • Standby mode
  • More than 6 hours battery life
  • External power supply compatibility
  • Waterproof & shockproof
  • 5-year warranty

Specifications


Digital Zoom 1×, 2×, 4×, 8× Exit Pupil Diameter 6 mm Eye Relief 45 mm Dimensions 261 × 111 × 79 mm (10.3 × 4.4 × 3.1 in) (w/o mount) Palettes Black Hot, White Hot, Red Hot, Fusion Reticle 10 types, 4 colors, on/off Boresight Adjustment Digital Controlled Picture In Picture Mode (PIP) Yes Video Recording Yes Audio Recording Yes Magnification 4× – 32× Detector type 12μm VOx Uncooled Focal Plane Array Response Waveband 8 μm to 14 μm FFC (Flat Field Correction) Auto, Manual, External Correction Highest Temperature Spot Tracking Yes Standby Mode Yes Refresh rate 50 Hz Resolution 640 × 512 Laser Rangefinder Up to 1000 m, ±4 m accuracy Laser Wavelength 905 nm Detection Range (6' object) 3.800 m Lens system 75 mm; F1.2 NETD Less than 20 mK (@25°C), F#=1.0 Field of view (H × X) 5.9° × 4.7° Diopter adjustment range -5 to +3 dpt Monitor 1024x768, 0.39 inch, OLED Storage 16 GB EMMC Capture Snapshot Yes Battery Type Four CR123A Lithium batteries Wi-Fi Yes Battery Operating Time Мore than 6 hours External power supply 5 VDC/2 A, USB Type-C Operating Temperature Range -30°C to 55°C (-22°F to 131°F) Weight 0.7 kg (1.55 lb) Protection Level IP67
