Characteristics
Detector type: 12μm VOx Uncooled Focal Plane Array
Refresh rate: 50 Hz
Resolution: 256 x 192
FOV: 9.3° × 6.9°
Package Includes
- Mount
- Two Rechargeable Battery
- Charger
- USB Cable
- Lens Cloth
- Manual
- Carrying Case
Downloads
Data Sheet User ManualExport Restrictions:
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
Description And features

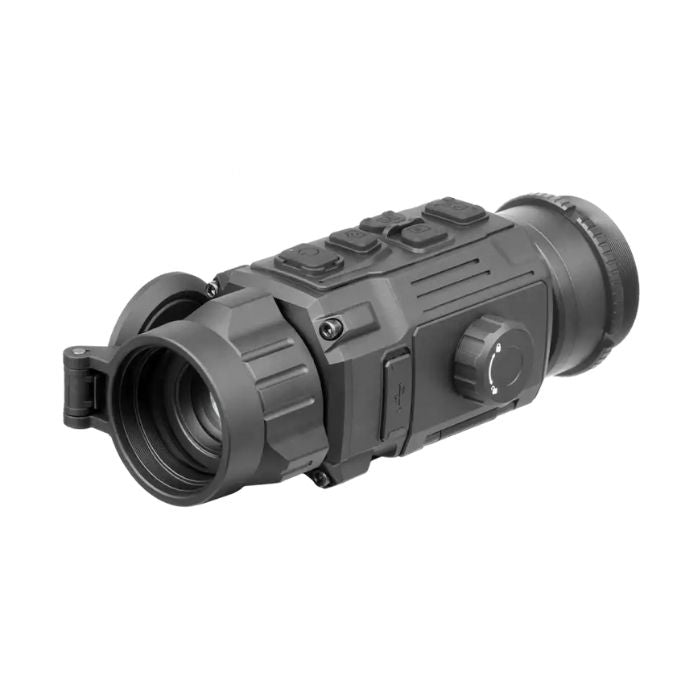

The NEW AGM Rattler-C V2 series of thermal clip-ons boasts a industryleading 12 micron, sub-20mk thermal detectors (NETD <20mK for 384 and 640 models). These physical attributes provide users with some of the best image quality AGM has produced to date with potential detection ranges up to 2600 yards. The Rattler-C V2 thermal clip-ons have a high-sensitivity sensor, which provides a clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The Rattler-C V2 clip-on The Rattler TC can easily be attached in front of day scopes to quickly convert a day optic into a thermal imaging device without any special tools or equipment required. Powered replaceable and rechargeable Li-ion battery the AGM Rattler-C V2 provides up to 11 hours of continuous battery life on a single charge (2 batteries included). An external 5V power bank (battery pack) can be easily connected via a USB-C connector for a significant increase of operating time. Onboard Wi-Fi module is also available for live video streaming and video/images recording via mobile application.
Warning: California's Proposition 65
- Quick conversion of daytime optics into thermal imaging scope
- 12μm high-sensitivity thermal detector, NETD < 20mK
- Fast 50Hz imaging
- High resolution OLED display
- Adjustable color palettes
- On-board video/audio recording and image capture
- Built-in EMMC storage (16 GB)
- Shot Activated Recording (SAR)
- Wi-Fi data transmission
- Stadiametric rangefinder
- Standby mode
- 9 - 11 hours battery life (depending on model)
- External power supply compatibility
- Waterproof & shockproof
- 5-year warranty
Specifications
Shot-Activated Recording Yes Max. Recoil 1000 g/0.4 ms Dimensions 184 × 68 × 67 mm (7.2 × 2.7 × 2.6 in) Flat Field Correction (FFC) Auto, Manual, External Correction Palettes Black hot, White hot, Red hot, Fusion Exit Pupil Diameter 22 mm Distance Measurement Yes (Stadiametric Scene Mode Cold, Warm Video Recording Yes Defective Pixels Correction (DPC) Yes Audio Recording Yes Detector type 12μm VOx Uncooled Focal Plane Array Standby Mode Yes Refresh rate 50 Hz Resolution 256 × 192 Detection Range (6' object) 1000 m/yd Snapshot Yes Lens system 19 mm; F/1.0 NETD Less than 35 mK (25°C, F# = 1.0) Optical magnification 1× Field of view (H × X) 9.3° × 6.9° Hot Track Yes Eye relief 10 mm Display 0.39-inch, OLED, 1024×768 Storage Built-in EMMC (16 GB) Battery Type 4400mAh Replaceable and Rechargeable Li-ion Battery Wi-Fi Yes Battery Life (Operating) 11.5 h (25°C, with hotspot off) External power supply 5 VDC, 2 A, USB Type-C Operating Temperature Range -30°C to +55°C (-22°F to 131°F) Weight 0.5 kg (1.10 lb) Protection Level IP67 Package Includes Thermal Imaging Clip-On, Mount, Two Rechargeable Battery, Charger, USB Cable, Lens Cloth, Manual, Carrying Case Focus Range 0.5 m to infinity
