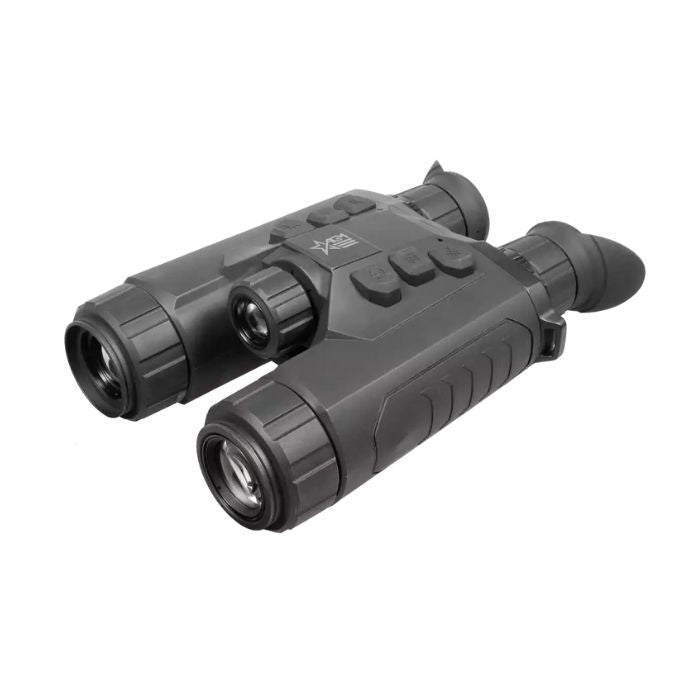

AGM - ObservIR LRF 25-256 Fusion Thermal Imaging & CMOS Binocular with built-in Laser Range Finder

by AGM
$1,495.00

Notify me when back in stock

Overview

Characteristics

Detector type: 12μm VOx Uncooled Focal Plane Array

Resolution: 256x192

Package Includes

  • 4x 18650 Rechargeable Battery
  • Battery Charger
  • USB Cable
  • Power Adapter
  • Tripod Adapter
  • Quick Start Guide
  • User Manual
  • Lens Cloth
  • Neck Strap

Downloads

Data Sheet User Manual

Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

Description And features


The AGM ObservIR LRF Thermal & Digital Day/Night Vision binocular is some of the most technologically advanced and feature-packed optics in the world. The primary engine behind these binocular lies within the main thermal viewing channel, with its high-sensitivity 12 micron detector. Unlike other thermal binoculars on the market, the ObservIR LRF also come outfitted with a digital day/night channel as well, which is great for aiding in recognition of targets detected by the thermal channel. The built-in 1,000m laser rangefinder simply takes the ObservIR LRF to another level, and this is without even mentioning its 64GB of internal memory and Wi-Fi compatibility. The ObservIR LRF monoculars also come packed with numerous software improvements, and many features that have become commonplace within the AGM thermal product assortment: high sensitivity thermal detector, 25mm Germanium lens with a 1.0 aperture, 3840x2160 ultra-low light CMOS sensor, various viewing modes, multiple color palettes, up to 4X digital zoom, picture-in picture mode, built-in laser rangefinder, GPS module, long-range IR illuminator, up to 8 hours of battery life on removable, rechargeable 18650 batteries, USB Type-C port for external power capabilities, IP67 waterproof rating. The package includes four 18650 batteries, wrist strap and charger

Warning: California's Proposition 65

  • 12μm high-sensitivity thermal sensor
  • 256x192 thermal resolution
  • 1x, 2x, 4x digital zoom
  • Dual-spectrum thermal and digital day/night system
  • Digital image processing technology
  • Ultra-low illumination optical channel
  • 3840×2160 optical resolution
  • Built-in IR illuminator
  • Eye-safe 1,000 m laser rangefinder
  • 1920×1080 resolution, 0.49-inch OLED display
  • Digital Magnetic Compass
  • Built-in GPS module
  • Video/audio recording and snapshot capture
  • Built-in 64 GB EMMC storage
  • Wi-Fi hotspot
  • Standby mode
  • 8-hour continuous operation on a single charge
  • Auto screen-off function to saving energy
  • External power supply capability
  • Rugged housing with rubber overmolding
  • Waterproof and dustproof

Specifications


Interpupillary Distance 60 mm to 74 mm Resolution 256 × 192 Infrared Illuminator Built-in 850nm Smart IR.Power and beam angle adjustment. Dimensions 221×142×71 mm (8.7×5.6×2.8 in) Working Temperature -20°C to 55°C (-4°F to 131°F) Distance Measurement Laser Rangefinder: up to 1,000 m, ±1 m accuracy Video Recording Yes Audio Recording Yes Magnification Thermal 4.5x – 18x Optical 5.5x – 22x Detector type 12μm VOx Uncooled Focal Plane Array Standby Mode Yes Refresh rate 50 Hz Detection Range (6' object) 1,200 m Snapshot Yes Lens system Thermal 25 mm; F1.0 Optical 5.5x – 22x NETD Less than 35 mK (25°C, F#=1.0) Power 5 VDC/2 A, USB Type-C interface. Supports external power supply. Field of view (H × X) Thermal 7.0° × 5.3° Optical 6.9° × 4.1° Digital zoom 1x, 2x, 4x Diopter adjustment range -5 to +3 dpt Monitor 1920×1080, 0.49 inch, OLED, 50 FPS Display Day, Night, Auto Storage Built-in 64 GB EMMC Battery Type Two 18650 rechargeable battery (removable) Wi-Fi Yes Battery Life (Operating) Up to 8 hours continuous running (@25°C, WiFi, IR and LRF off) Weight 0.89 kg (1.96 Ib) Protection Level IP67 (Waterproof)
