Characteristics
Image Intensifier Tube: Gen 3 Auto-Gated "White Phosphor Level 1"
Magnification: 1x (3x optional)
Lens System: 19 mm; F/1.26
FOV: 51°
Package Includes
- NVG Interface Shoe
- Bayonet/Horn Interface Shoe
- Demist Shield (2)
- Sacrificial Window
- Packing Box
- Soft Carrying Case
- Lens Cloth
- Battery Adapter
- User Manual
Downloads
Export Restrictions:
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
Description And features
The AGM NVG-50 is a dual-channel night vision system. The NVG-50 uses optics which give it a wider 51° field of view with the tradeoff of shorter eye-relief. The NVG is made of a compact composite housing for durability, and features advanced multi-coated optics. The device can be outfitted with either a Gen 2+ or Gen 3 high-performance image intensifier tube (IIT). The bright light cut-off feature ensures that the high-quality photocathode tube is protected. The NVG is also equipped with Manual Gain Control, which adjusts the image brightness, providing the highest possible image quality even in changing light conditions. Operating from a single AA alkaline battery or CR123A battery, the NVG can run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark.
For hands-free use of the NVG, it can be installed to many various mounts, such as the AN/PVS-7D, AN/PVS-14, AN/PVS-7A/C, AN/PVS-15, and AN/PVS-18 mounts, or to the mounts with mini-rail interface.

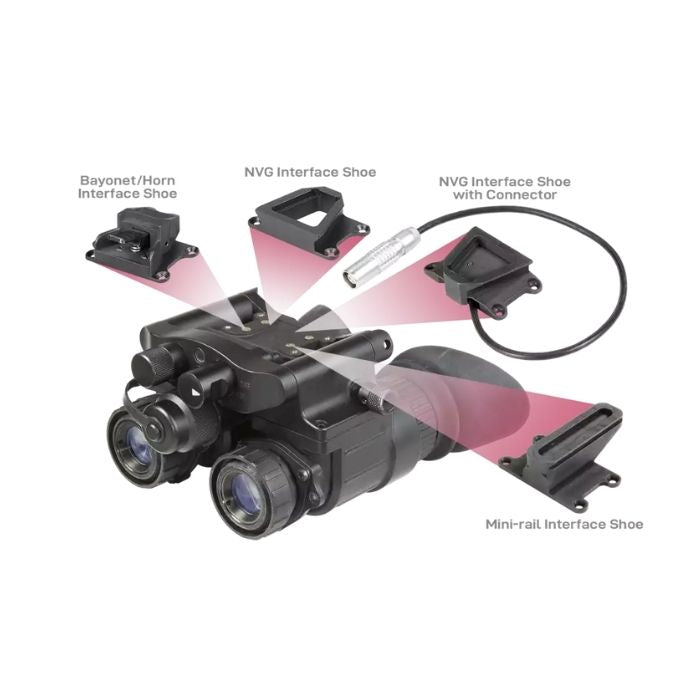

NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.
Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.
NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.
Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount
Warning: California's Proposition 65
- Redundant dual-tube design
- True stereoscopic vision
- Wide 51° field of view
- Lightweight & compact
- Waterproof
- Head or helmet mountable for hands-free operation
- Bright light cut-off
- Ergonomic, simple, easy to operate controls
- Built-in Infrared illuminator and flood lens
- Utilizes single CR123A lithium or AA battery
- 3-Year warranty
Specifications
Image Intensifier Tube Gen 3 Auto-Gated "White Phosphor Level 1" Resolution 64-72 lp/mm Field of view cleanness by zone Gen 3 IIT 3AW1 is offered with high quality and practically no visible spots in Zone 1. Magnification 1x (3x optional) Lens System 19 mm; F/1.26 FOV 51° Focus Range 0.25 m to infinity Eye Relief 17 mm Diopter Adjustment -6 to +2 dpt Led Indicators Low battery; IR on; Excessive light conditions Infrared Illuminator Yes Manual Gain Control Yes Bright Light Cut-Off Yes Automatic Shut-Off System Yes Battery Type One CR123A (3V) or AA (1.5 V) Battery Life (Operating) Up to 20 hours at 20°C (up to 80 hrs with optional battery pack) Waterproof Yes Operating Temperature Range -40°C to +50°C (-40°F to +122°F) Storage Temperature Range -50°C to +50°C (-58°F to +122°F) Weight 615 g (1.35 lbs) Overall Dimensions 112 × 118 × 74 mm (4.4 × 4.6 × 2.9 in) Protection Level IP67
