- Overview
Overview
Characteristics
Export Restrictions:

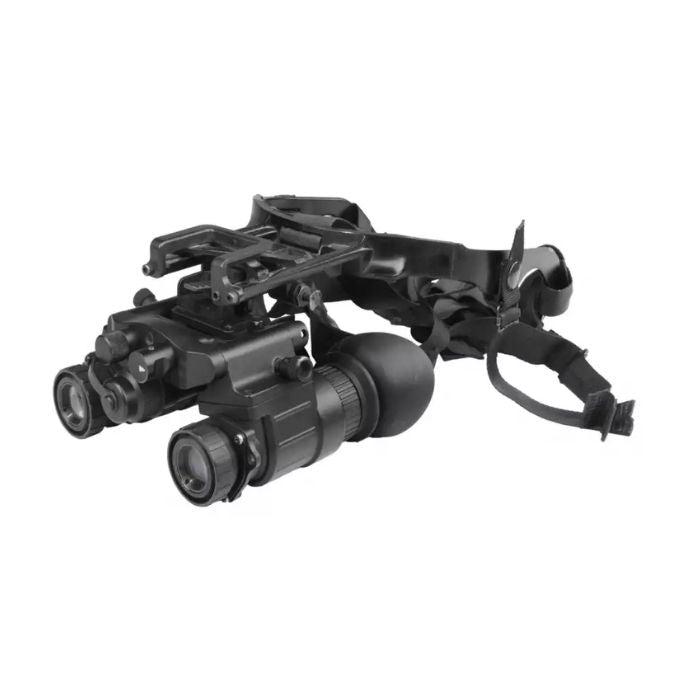

The AGM NVG-50 is a dual-channel night vision system. With a 51° field of view (FOV), it provides a large visual field without needing to move the binoculars. The NVG-50 uses advanced multi-coated optics and is built to last with a compact composite housing. The device outfitted with high-performance image intensifier tube (IIT). The bright light cut-off feature ensures that the high-quality photocathode tube is protected. The NVG-50 is also equipped with Manual Gain Control, which adjusts the image brightness, providing the highest possible image quality even in changing light conditions. Operating from a single AA alkaline battery or CR123A battery, the NVG-50 can run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark.
For hands-free use of the NVG, it can be installed to many various mounts, such as the AN/PVS-7D, AN/PVS-14, AN/PVS-7A/C, AN/PVS-15, and AN/PVS-18 mounts, or to the mounts with mini-rail interface.
NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.
Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.
NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.
Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount
LIMITED EDITION AGM GRAY NVG-50 We have L3 and Elbit tubes in stock and ready to assemble these units. Spec sheets with more detail are included with every purchase.
Image Intensifier Tube Elbit or L3 Auto-Gated Gen 3 Tubes Resolution 64-72 lp/mm Magnification 1x (3x optional) Lens System 19 mm; F/1.26 FOV 51° Focus Range 0.25 m to infinity Eye Relief 17 mm Diopter Adjustment -6 to +2 dpt Led Indicators Low battery; IR on; Excessive light conditions Infrared Illuminator Yes Manual Gain Control Yes Bright Light Cut-Off Yes Automatic Shut-Off System Yes Battery Type One CR123A (3V) or AA (1.5 V) Battery Life (Operating) Up to 20 hours at 20°C (up to 80 hrs with optional battery pack) Operating Temperature Range -40°C to +50°C (-40°F to +122°F) Storage Temperature Range -50°C to +50°C (-58°F to +122°F) Weight 615 g (1.35 lbs) Overall Dimensions 112 × 118 × 74 mm (4.4 × 4.6 × 2.9 in)
Image Intensifier Tube: Elbit or L3 Auto-Gated Gen 3 Tubes
Magnification: 1x (3x optional)
Lens System: 19 mm; F/1.26
FOV: 51°
Package Includes- NVG Interface Shoe
- Bayonet/Horn Interface Shoe
- Demist Shield (2)
- Sacrificial Window
- Packing Box
- Soft Carrying Case
- Lens Cloth
- Battery Adapter
- User Manual
Export Restrictions:
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
Description And features
The AGM NVG-50 is a dual-channel night vision system. With a 51° field of view (FOV), it provides a large visual field without needing to move the binoculars. The NVG-50 uses advanced multi-coated optics and is built to last with a compact composite housing. The device outfitted with high-performance image intensifier tube (IIT). The bright light cut-off feature ensures that the high-quality photocathode tube is protected. The NVG-50 is also equipped with Manual Gain Control, which adjusts the image brightness, providing the highest possible image quality even in changing light conditions. Operating from a single AA alkaline battery or CR123A battery, the NVG-50 can run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark.
For hands-free use of the NVG, it can be installed to many various mounts, such as the AN/PVS-7D, AN/PVS-14, AN/PVS-7A/C, AN/PVS-15, and AN/PVS-18 mounts, or to the mounts with mini-rail interface.
NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.
Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.
NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.
Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount
LIMITED EDITION AGM GRAY NVG-50 We have L3 and Elbit tubes in stock and ready to assemble these units. Spec sheets with more detail are included with every purchase.
Warning: California's Proposition 65
- Redundant dual-tube design
- True stereoscopic vision
- Wide 51° field of view
- Elbit or L3 Auto-Gated Gen 3 Tubes
- P45-White Phosphor IIT
- Lightweight & compact
- Head or helmet mountable for hands-free operation
- Bright light cut-off
- Manual gain control
- Ergonomic, simple, easy to operate controls
- Built-in Infrared illuminator and flood lens
- Utilizes single CR123A lithium or AA battery
- Limited 3-year warranty
- Made in the USA
Specifications
Image Intensifier Tube Elbit or L3 Auto-Gated Gen 3 Tubes Resolution 64-72 lp/mm Magnification 1x (3x optional) Lens System 19 mm; F/1.26 FOV 51° Focus Range 0.25 m to infinity Eye Relief 17 mm Diopter Adjustment -6 to +2 dpt Led Indicators Low battery; IR on; Excessive light conditions Infrared Illuminator Yes Manual Gain Control Yes Bright Light Cut-Off Yes Automatic Shut-Off System Yes Battery Type One CR123A (3V) or AA (1.5 V) Battery Life (Operating) Up to 20 hours at 20°C (up to 80 hrs with optional battery pack) Operating Temperature Range -40°C to +50°C (-40°F to +122°F) Storage Temperature Range -50°C to +50°C (-58°F to +122°F) Weight 615 g (1.35 lbs) Overall Dimensions 112 × 118 × 74 mm (4.4 × 4.6 × 2.9 in)
