Characteristics
Image Intensifier Tube: Gen 3 Auto-Gated "White Phosphor 3APW"
Magnification: 1x
Lens System: 27 mm, F/1.3
FOV: 40°
Package Includes
- NVG Interface Shoe
- Bayonet/Horn Interface Shoe
- Demist Shield (2)
- Sacrificial Window
- Soft Carrying Case
- Lens Tissue
- Packing Box
- Battery Adapter
- User Manual
Downloads
Export Restrictions:
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
Description And Features

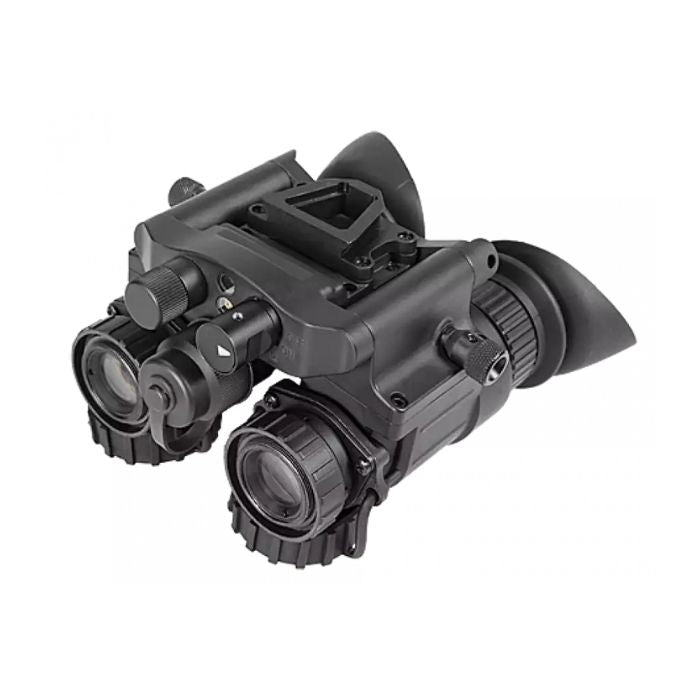

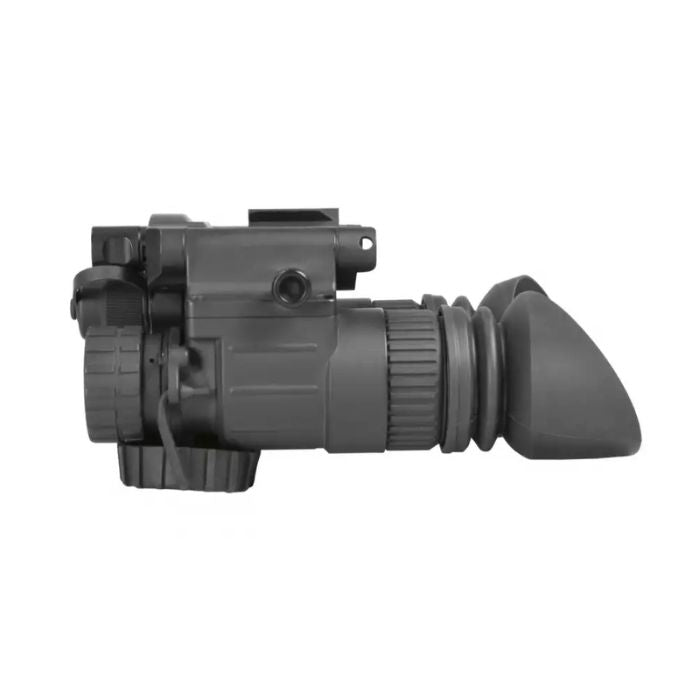

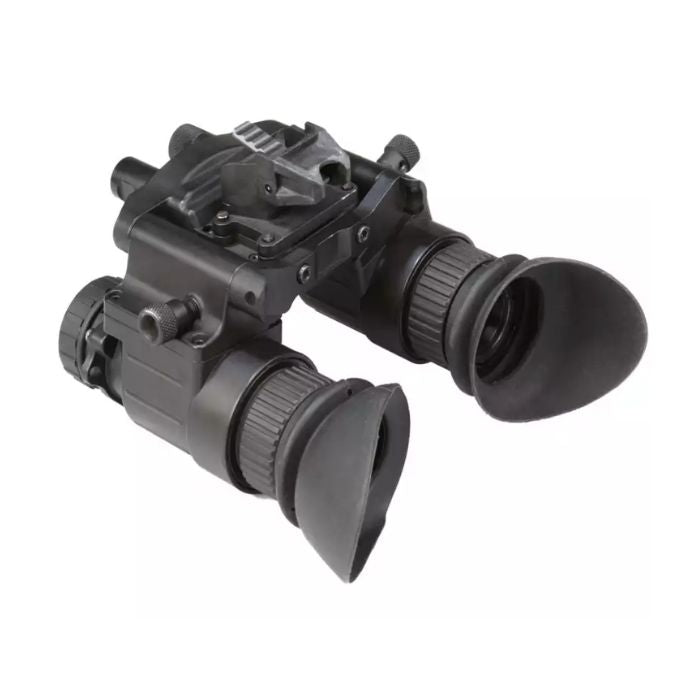

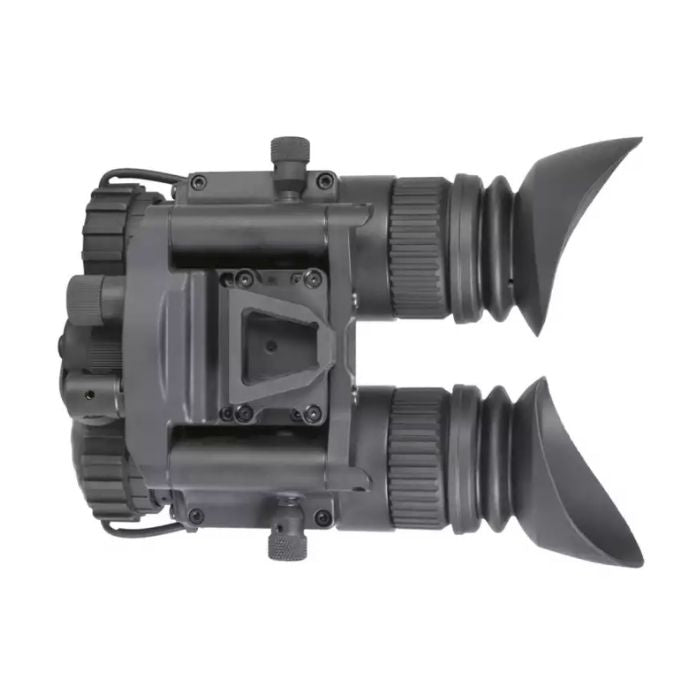

The AGM NVG-40 is a dual-channel night vision system. The NVG is made of a compact composite housing for durability, and features advanced multi-coated optics. The device can be outfitted with either a Gen 2+ or Gen 3 high-performance image intensifier tube (IIT). The bright light cut-off feature ensures that the high-quality photocathode tube is protected. The NVG is also equipped with Manual Gain Control, which adjusts the image brightness, providing the highest possible image quality even in changing light conditions. Operating from a single AA alkaline battery or CR123A battery, the NVG can
run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark.

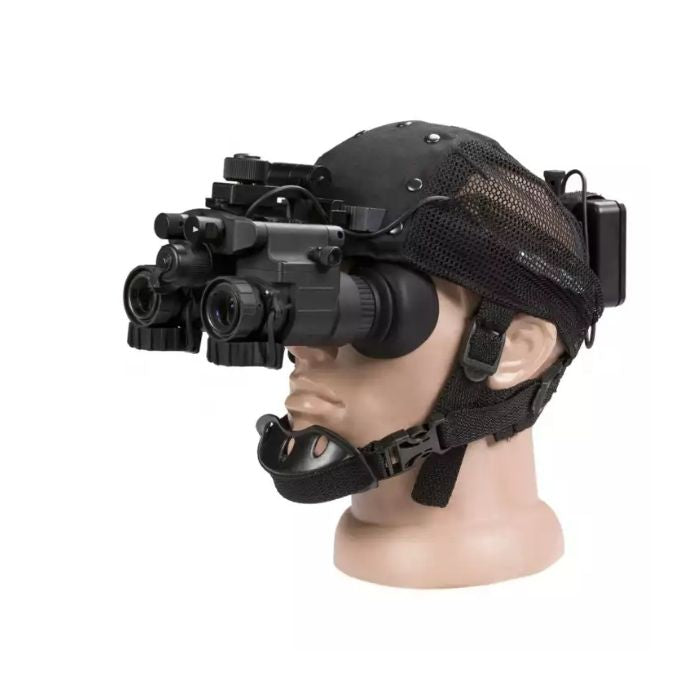

NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.

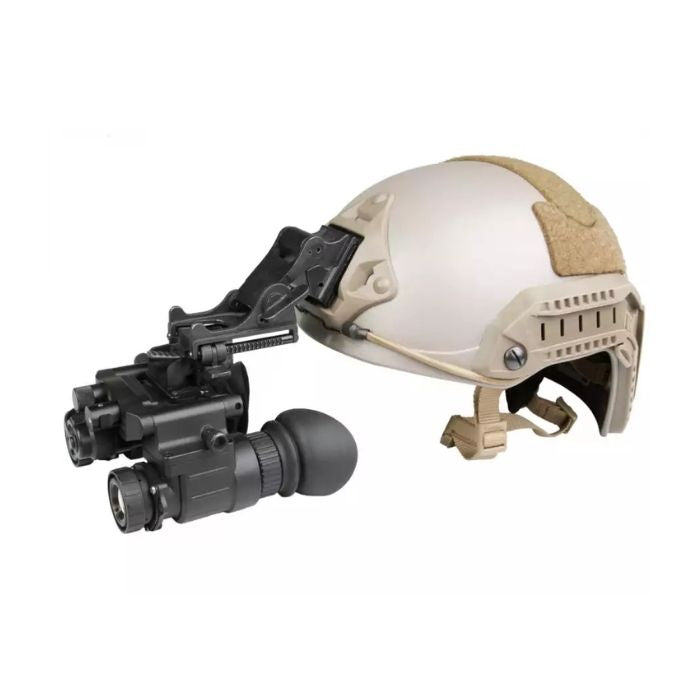

Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.
NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.
Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount
Warning: California's Proposition 65
- Redundant dual-tube design
- True stereoscopic vision
- Lightweight & compact
- Waterproof

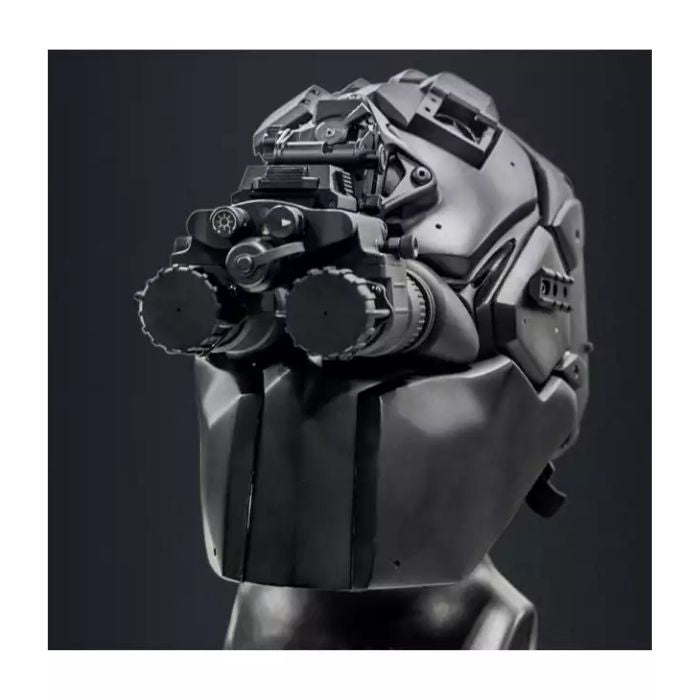

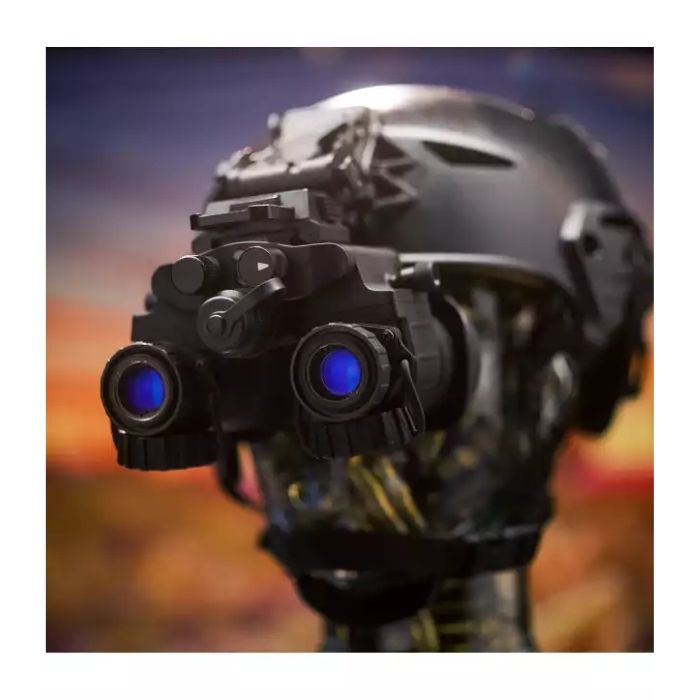

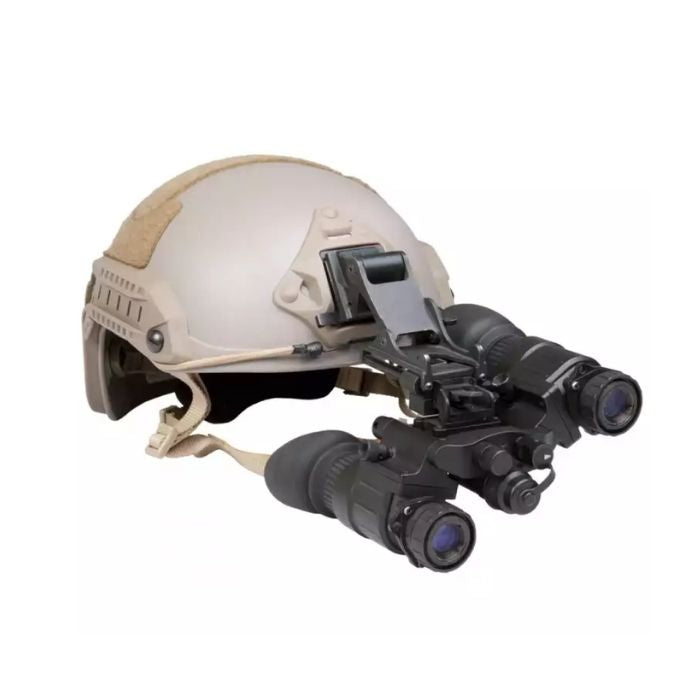

- Head or helmet mountable for hands-free operation
- Bright light cut-off
- Ergonomic, simple, easy to operate controls
- Built-in Infrared illuminator and flood lens
- Utilizes single CR123A lithium or AA battery
- 3-Year warranty
Specifications
Image Intensifier Tube Gen 3 Auto-Gated "White Phosphor 3APW" Resolution 64-72 lp/mm Field of view cleanness by zone Gen 3 IIT 3APW is offered with high quality and practically no visible spots in Zone 1. Magnification 1x Lens System 27 mm, F/1.3 FOV 40° Focus Range 0.25 m to Infinity Eye Relief 25 mm Diopter Adjustment -6 to +2 dpt Led Indicators Low Battery IR On Excessive Light Conditions Infrared Illuminator Yes Manual Gain Control Yes Bright Light Cut-Off Yes Automatic Shut-Off System Yes Battery Type One CR123A (3V) or AA (1.5 V) Battery Life (Operating) Up to 20 hours at 20°C (up to 80 hrs with optional battery pack) Waterproof Yes Operating Temperature Range -40°C to +50°C (-40°F to +122°F) Storage Temperature Range -50°C to +70°C (-58°F to +158°F) Weight 645 g (1.42 lbs) Overall Dimensions 115 × 118 × 74 mm (4.5 × 4.6 × 2.9 in) Package Includes Night Vision Goggles, Soft Carrying Case, Lens Cloth, Battery Adapter, User Manual Protection Level IP67
