Characteristics
Image Intensifier Tube: Gen 3 Auto-Gated "Level 1"
Magnification: 8x
Lens System: 216 mm; F/1.8
FOV: 4.5°
Package Includes
- Detachable IR Illuminator
- Tripod
- Lens Cloth
- Hard Case
- User Manual
Downloads
Export Restrictions:
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
Description And features

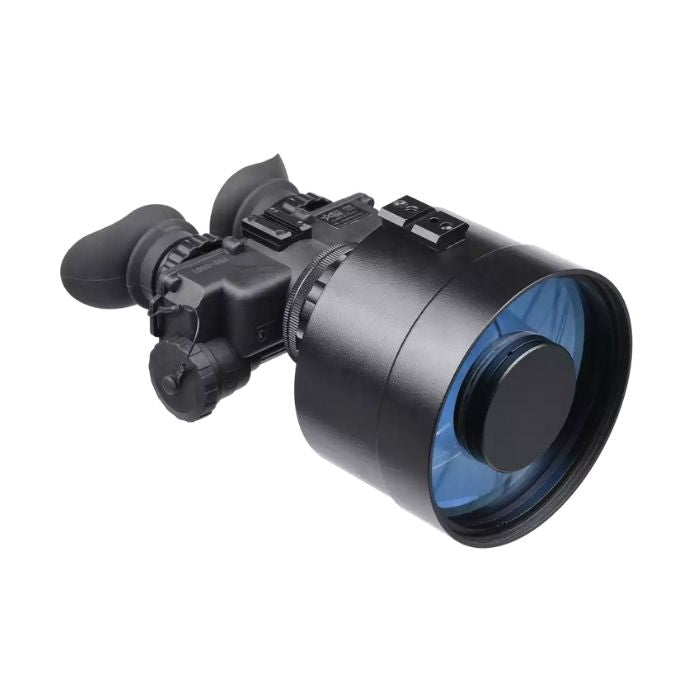

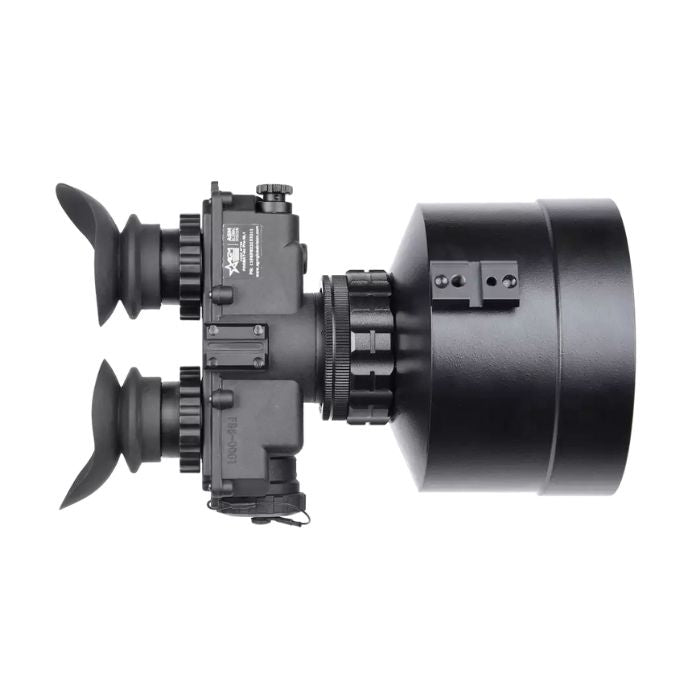

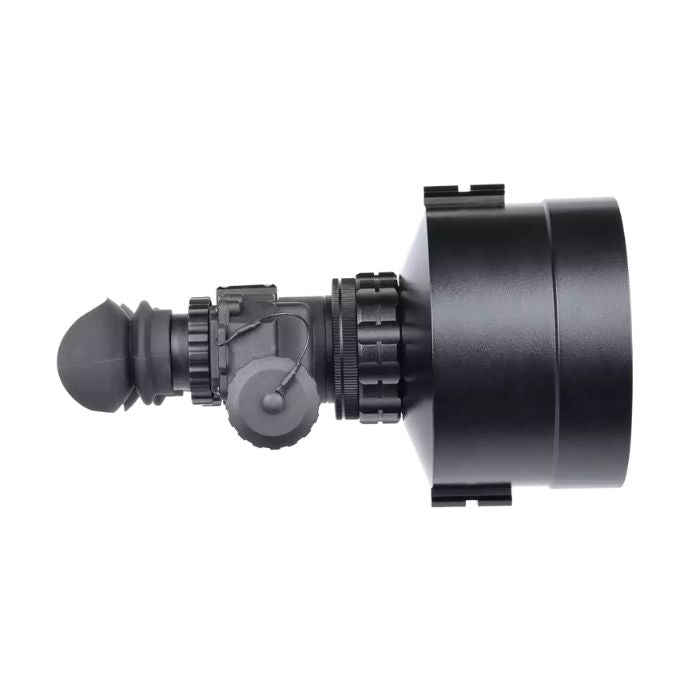

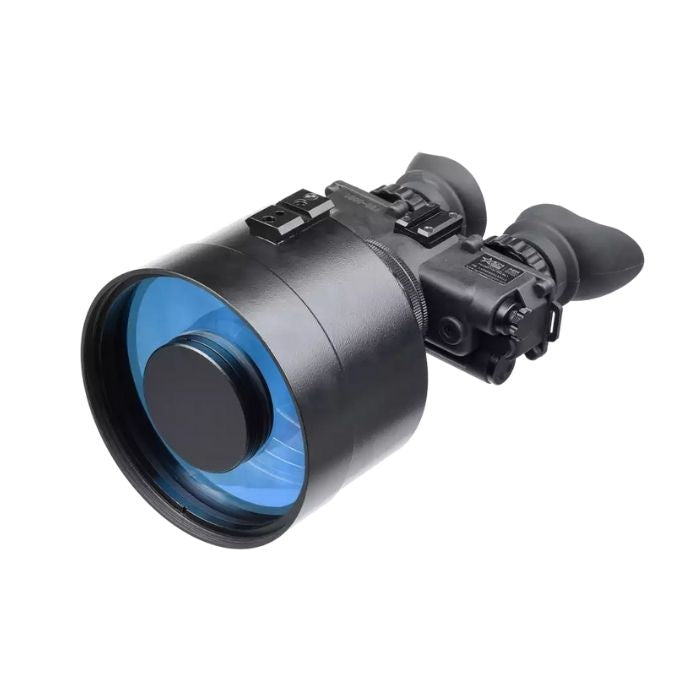

The AGM Foxbat-8X night vision bi-ocular is the perfect tool for long-range observation. The Foxbat-8X combines a compact catadioptric objective lens, single high quality image intensifier tube with image beam splitter, double eyepiece and reliable electronics.
AGM Foxbat-8X provides a sufficient and durable solution for long duration viewing sessions and long range observation. This night vision bi-ocular is the ideal choice for border security, base perimeter observation, intelligence collection, and recreational use .
Operators will experience the benefits of crystal-clear images combined with professional, fast multicoated optics. The AGM Foxbat-8X has a mounting options to provide relief from fatigue.
The Foxbat-8X is a magnified, high-grade night vision device built around a Gen 2+ high-performance image intensifier tube. The high-light shut-off feature ensures that the high-quality image intensifier tube is protected from over-exposure. The Foxbat-8X is powered by two AA batteries and its typical operating time on a single battery load is up to 40 hours of continuous use.
Warning: California's Proposition 65
- 8x magnification
- Protection Level IP67
- Super-fast, multi-coated, all-glass optics
- Dual eye viewing system for long viewing sessions
- Rugged and versatile design
- Water and fog resistance
- Ergonomic and easy to operate controls

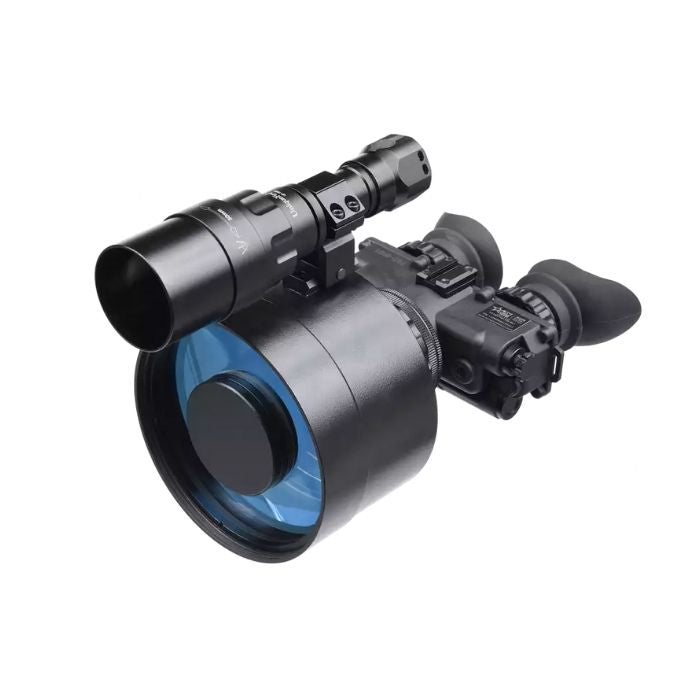

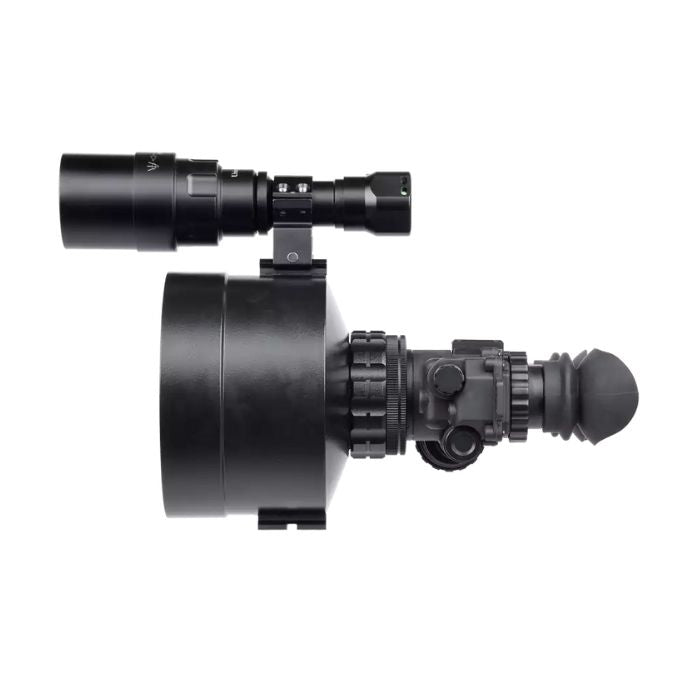

- Detachable long-range IR illuminator
- Mountable
- 3-Year warranty
Specifications
Image Intensifier Tube Gen 3 Auto-Gated "Level 1" Resolution 64-72 lp/mm Magnification 8x Lens System 216 mm; F/1.8 FOV 4.5° Focus Range 10 m to infinity Diopter Adjustment -5 to +5 diopters Automatic Brightness Control Yes Infrared Illuminator Detachable long-range IR illuminator Bright Light Cut-Off Yes Battery Type Two 1.5V AA batteries or 1 Lithium (BA-5567/U) Battery Life (Operating) Up to 40 hrs Operating Temperature Range -40°C to +50°C (-40°F to +122°F) Storage Temperature Range -50°C to +70°C (-58°F to +158°F) Weight 1.76 kg (3.9 lb) Overall Dimensions 215 × 155 × 146 mm mm (8.5 × 6.1 × 5.7 in) Package Includes Night Vision Bi-ocular, Detachable IR Illuminator, Tripod, Lens Cloth, Hard Case, User Manual
